Bidirectional Transmission Fiber Optic Extender , 60m Optical Audio Cable Extender

Splitter Extender 1x8 Extend HDMI Signal Over CAT6 Cable up to 60M

FEATURES

1. One HDMI input signal split to five HDMI sink devices(One is the LOOP output, the other four outputs is the RJ45 output)

2. Support 3D 1080P

3. Support deep color 30bit, 36bit

4. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

5. Digital audio format, as DT-HD/Dol-trueHD/LPCM7.1/DT/Dol-AC/DSD

6. Support signal retiming

7. Support output up to 50metres CAT6 cable

8. No loss of quality

9. Installs in minutes

The accessories with the machines lists as below

1. 9 x Power Adaptor

2. 1 x User manual

3. 1 x Extender Splitter

4. 8 x RX

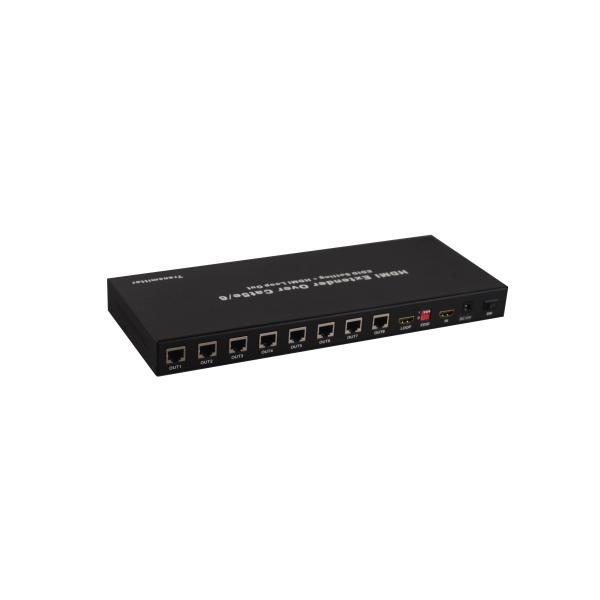

Physical Connection Showing Picture:

CAT1—8 : RJ45 output 1---8 EDID:EDID choose

IN: HDMI input LOOP: HDMI output

DC: 12V power input

Operating and Connecting:

Using HDMI splitter and Receiver pairing, you can achieve the transmission of HDMI signals to 50 meters, through the CAT6 Cable.

SPECIFICATIONS

HDMI resolution : 3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format : 24bit/deep color 30bit,36bit

Support audio format : DT-HD/Dol-trueHD/LPCM7.1/DT/Dol-AC/DSD

Max bandwidth : 2250MHz

Max baud rate : 6.25Gbps

Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal : 5Volts p-p (TTL)

Input cable distance : ≤10m AWG26 HDMI standard cable

Output cable distance : ≤60m CAT6 cable

Max working current : 12V/1500MA

Power adapter format..Input : AC (50HZ, 60HZ) :100V-240V

Operating Temperature range : (-15 to +55 degree)

Operating Humidity range : 5 to 90%RH (No Condensation)

​
