52V 450W 16 Port 1000M PoE Ethernet Switch SFP Connector Build In Power

Product Categories
Shenzhen Newbridge Communication Equipment Co.,Ltd
Contact Now

52V 450W 16 Port 1000M PoE Ethernet Switch SFP Connector Build In Power

Brand Name : NEWBRIDGE

Model Number : ND-PSNG1116F-AT

Certification : FCC,CE

Place of Origin : SHENZHEN,CHINA

MOQ : 1PC

Price : Negotiation

Packaging Details : packing can be done by customer's requested, usually used in carton

Delivery Time : According to the quantiy and stocking , 3-4 working days after payment

Payment Terms : T/T , Western Union

Supply Ability : According to the different products , the monthly output is different

Total Power : 52V 8.7A 450W

Port Power : -40 ~ +75°C

POE Port : 16

IEEE 802.3af : 15.4 W

size : 440*290*44mm

Transmission Rate : 10/100/1000Mbps

Contact Now

16 port 1000M 52V 450W PoE Switch ip Camera PoE SFP Connector

Non management*Compatible IEEE802 3af at,IEEE802 3az function*6 X 10 100 1000Mbps RJ45 port*4 X PSE port, Output power up

Feature

Support IEEE802.3af/IEEE802.3af standard
802.3az support energy-efficient features
Automatically detect the PD
PoE port support a single output power up to 30W
Port power is automatically assigned
Dynaic Power Allocation

Specification

● 16 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m
● Uplink port:2 Gigabit Ethernet port,Data transmission up to 100m, or 2 Gigabit Fiber Ports,Data transmission:depends on the optical module
● Maximum 30 watts power for each PoE port
● IEEE 802.3af, IEEE 802.3at PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
●Total Power:52V8.7A 450W,build-in power supply

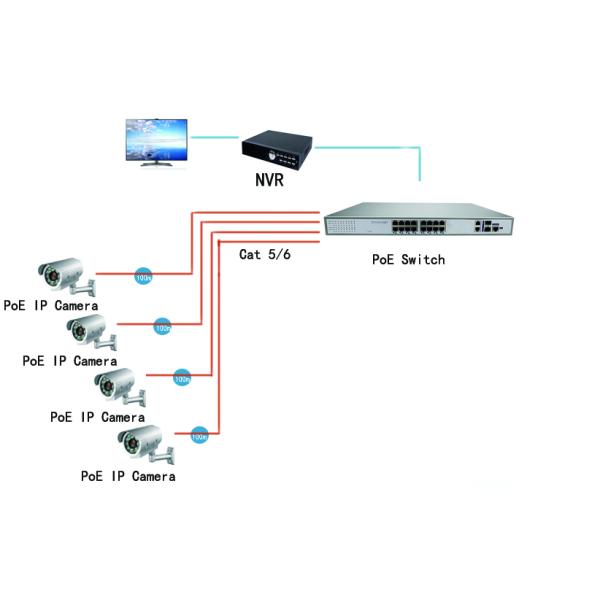

Connection diagram

52V 450W 16 Port 1000M PoE Ethernet Switch SFP Connector Build In Power

Order information

Part No Description of product Unit
ND-PSNG1116F-AT ND-PSNG1116F-AT PoE Switch pcs
